False Ceiling & L-Box Lighting Guide for HDB and Condo: Hiding Aircon Pipes in Style

Published: July 2026

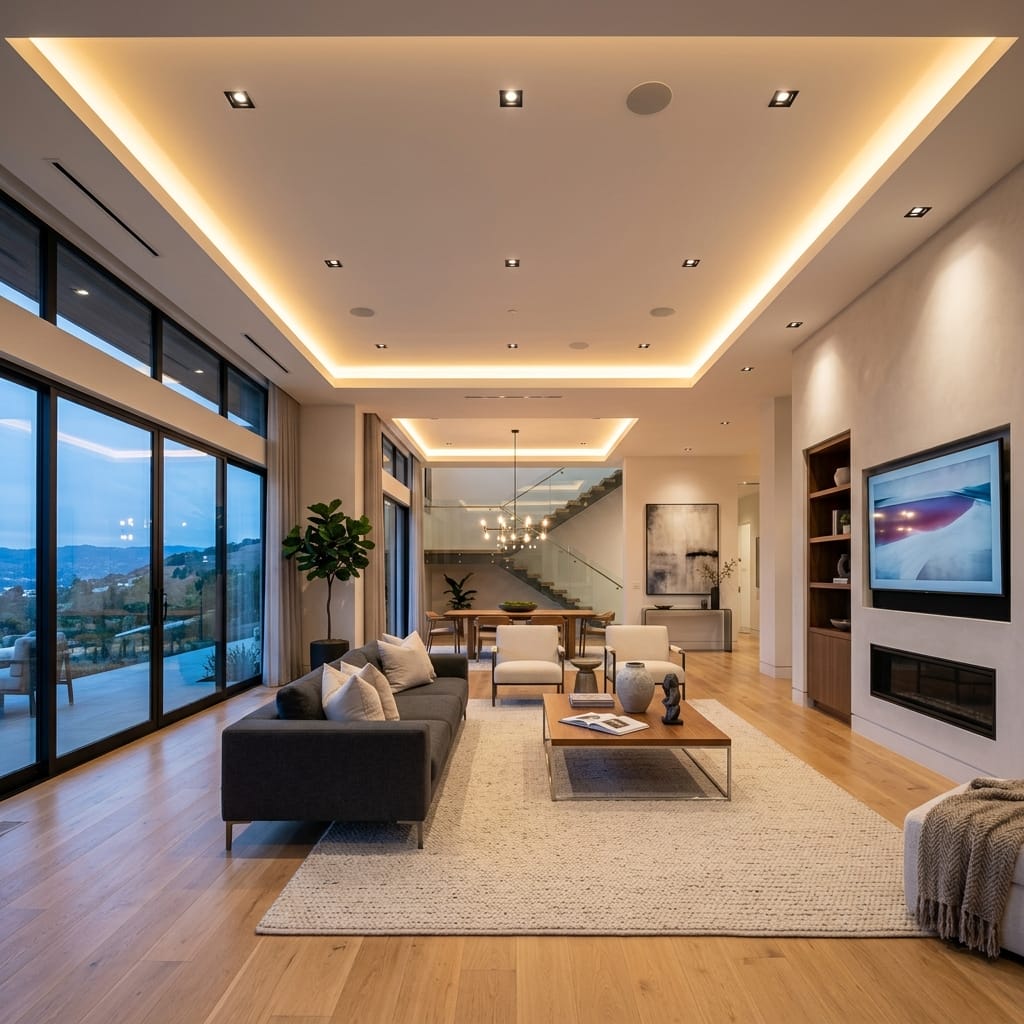

When you walk into a newly renovated showflat or a high-end condominium, one of the first things you notice is the lighting. Instead of a single, harsh fluorescent tube staring down from the center of the ceiling, the room is bathed in a soft, warm, diffused glow emanating from hidden architectural recesses.

This luxurious visual effect is achieved through False Ceilings and L-Box Light Troughs.

Beyond pure aesthetics, false ceilings solve one of the biggest functional nightmares in Singapore interior renovation: hiding bulky overhead pipes. In this comprehensive guide, we explore how false ceilings work, design advice, and critical safety rules for homeowners.

—

1. False Ceiling vs. L-Box: What is the Difference?

While the terms are often used interchangeably, they serve different structural and budget purposes.

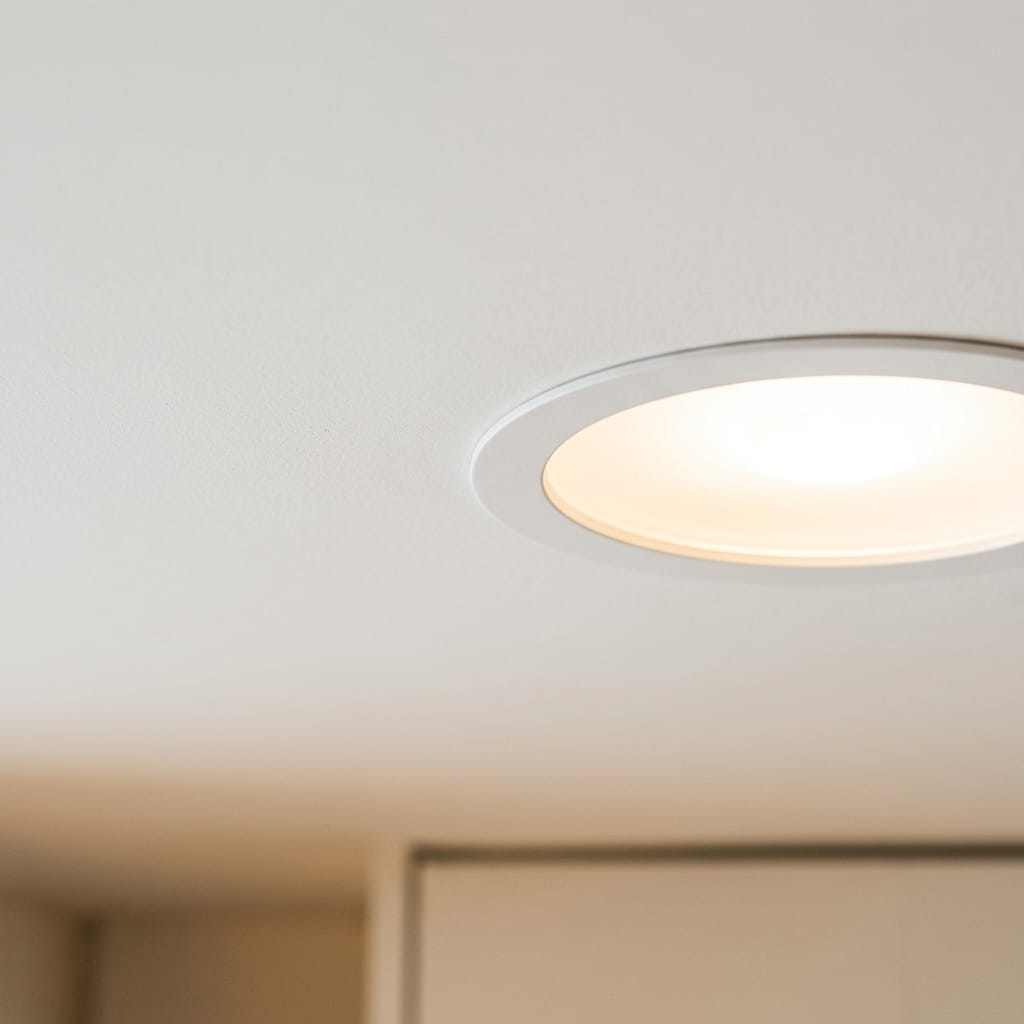

• Full False Ceiling: This is a secondary gypsum board ceiling suspended across the entire room, dropping your original structural ceiling height by about 4 to 6 inches. It creates a perfectly flat, monolithic surface where you can embed sleek, seamless downlights and hide all routing wires and pipes anywhere in the room.
• L-Box (Light Trough): An L-Box is built only along the perimeter edges of the room, leaving the original high ceiling in the center untouched. Because of its cross-sectional “L” shape, it creates a neat trough facing upwards, perfect for concealing LED light strips for indirect cove lighting. It is also more economical than a full false ceiling.

—

2. Hiding Aircon Trunking and Structural Beams

In Singapore HDB BTO flats and older resale units, air conditioner cooling pipes (trunking) must be routed from your bedrooms and living room all the way out to the condenser on the aircon ledge.

Without a false ceiling, these thick PVC trunks run visibly across your walls and ceilings like giant white caterpillars, instantly destroying your interior design.

A skilled interior contractor will design custom Pelmet Boxes and L-Boxes that run directly over the route of the aircon pipes. The ugly trunking is completely enclosed inside the gypsum structure, transforming an eyesore into an elegant architectural lighting feature.

—

3. Critical Engineering: Ceiling Fans & Heavy Chandeliers

One of the most dangerous mistakes an inexperienced renovator can make is screwing a heavy ceiling fan or chandelier directly into a standard gypsum plasterboard. Gypsum is a brittle plaster material; under the continuous vibration and torque of a spinning ceiling fan, the screws will pull out, and the fan can collapse.

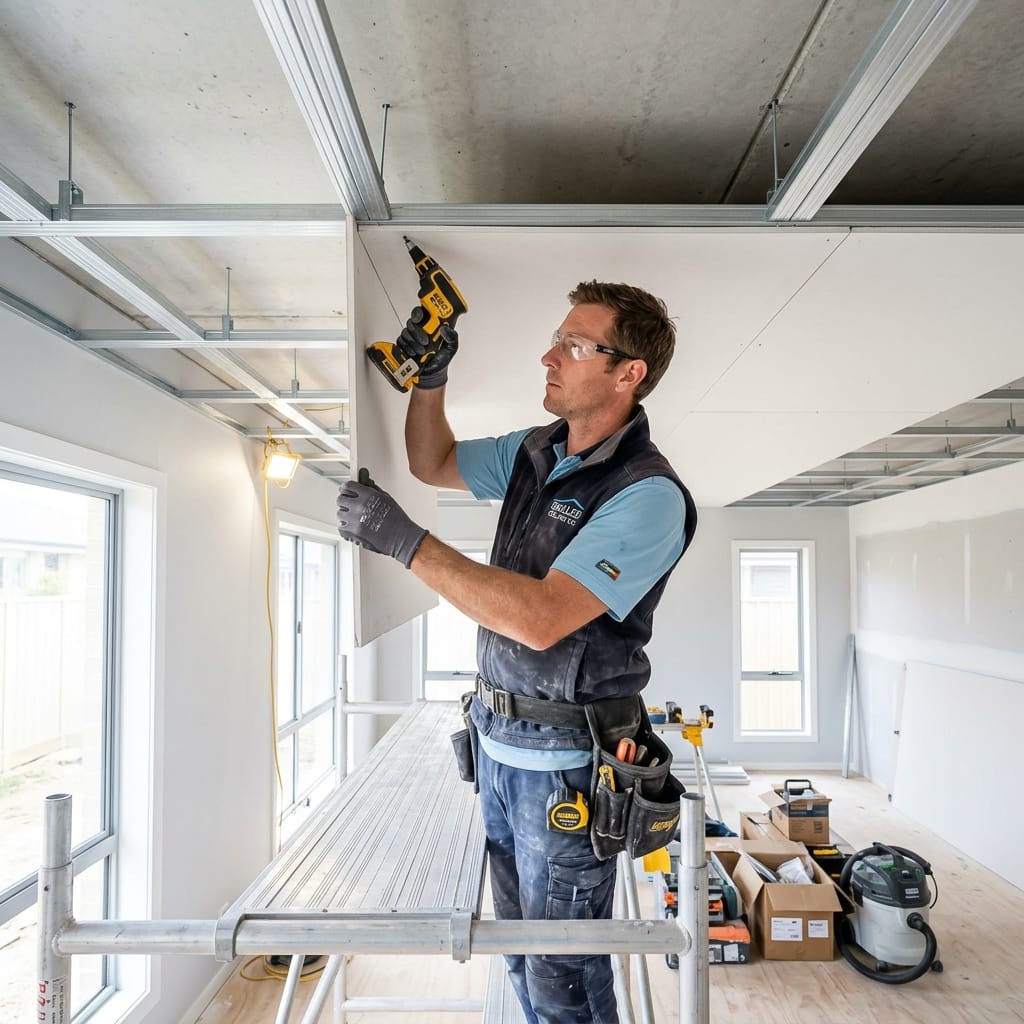

If you plan to install a ceiling fan or a heavy pendant lamp on a false ceiling, you must inform your contractor during the framing stage.

Timber Reinforcement: The contractor must install a solid timber block or thick plywood structural bracket directly anchored to the concrete ceiling slab above* the gypsum board. The ceiling fan is then mounted securely through the plasterboard directly into this solid wood frame, ensuring 100% vibration-free safety.

—

4. Maintenance & Access Panels (Manholes)

Once your false ceiling is sealed and plastered, what happens when an air conditioning pipe leaks, or the wiring needs servicing?

You should never have to smash open your ceiling to fix a leak. At Nouvelle Workz, we engineer hidden access panels (manholes) directly below critical junctions, valves, and aircon drainage pipes. These panels are designed with flush, minimalist aluminum frames that blend seamlessly into your ceiling, allowing future service technicians clean and immediate access without ruining your immaculate plasterwork.
